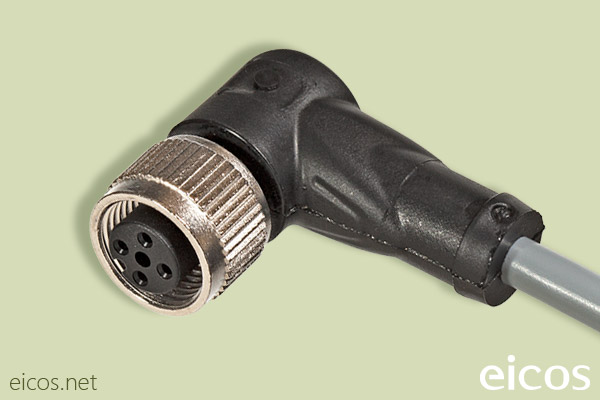

M12 90° Connector 5m PVC Cable for electrical connection of Eicos sensors with M12 plug

Technical Specifications

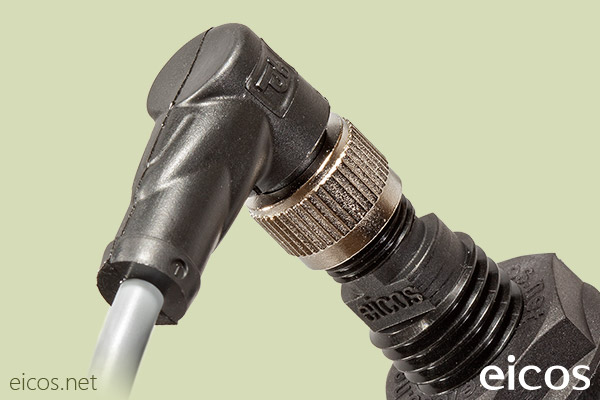

Connect the sensor of your automation with M12 Connector of 5 meters cable.

• Cable material: PVC

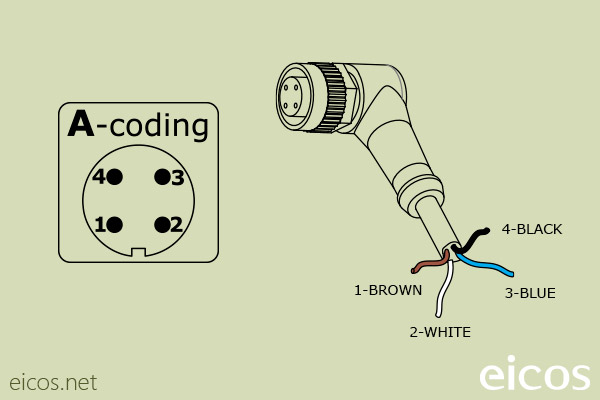

• Connectors: 04 contacts (female)
• Mounting: 90° angle
• Cable length: 5m
• Voltage: 250V
• Operating temperature range: -25°C to 85°C
• Enclosure rating: IP67
• Weight: 220g
•
• Application:

  Level Switches
  Side Mounting:

  • LA36-M12
  • LA32-M12
  • LA322E-M12
  • LA31N-M12
  • LF322E-M12
  Level Switches
  Vertical Mounting:

  • LC36-M12
  • LD361-M12
  • LD362-M12
  • Série LE
  Flow Switches:

  • FE14B02-M12
  • FE14B04-M12
  • FA14B02-M12
  • FA14B04-M12
  • FA14B06-M12
  • FH12B02-M12
  • FH12B04-M12
  • FH12B06-M12
  • FC34B02-M12
  • FC34B04-M12
  Contrasseco Sensor:

  • Contrasseco C1 M12
