> > > K8 Snubber Filter

K8 Snubber Filter for electrical connection of Eicos sensors

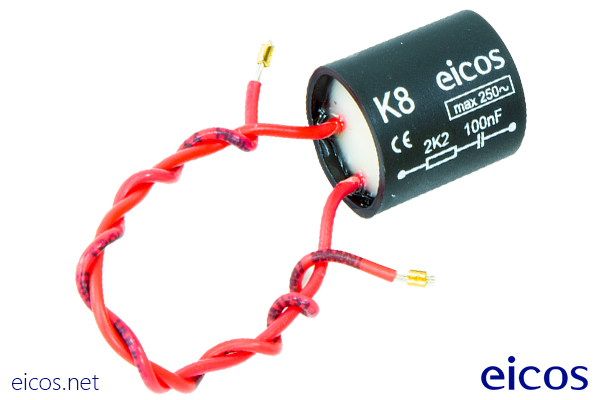

Snubber Filter K8 (AC) for contactors and command relays

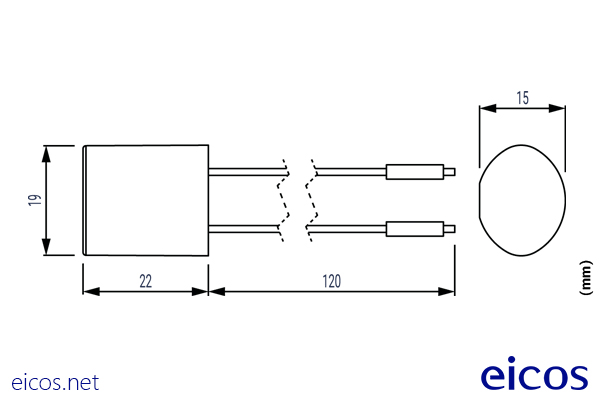

Dimensions of Snubber Filter K8 (AC) for contactors and command relays

1 pc.

US$ 6.80by piece

VAT not included

In stock
Request a Quote
Overview

Technical Specifications

Eliminate the electrical noise caused by switching of the coils.

  • For coils with power: < 8VA
  • Voltage: 0...220Vac
  • Weight: 7g
  • Mounting: Double-sided tape
  • Housing: Epoxy resin
  • Current: Alternating current (AC)
  •
  • Application: Contactors and command relays

Contactors and command relays Eicos flow switches to be used as reed switch protection

The internal components of the Snubber Filter K8 for AC
Datasheets

TECHNICAL DOCUMENTATION

Photos & Videos
Mounting

Wiring Diagram

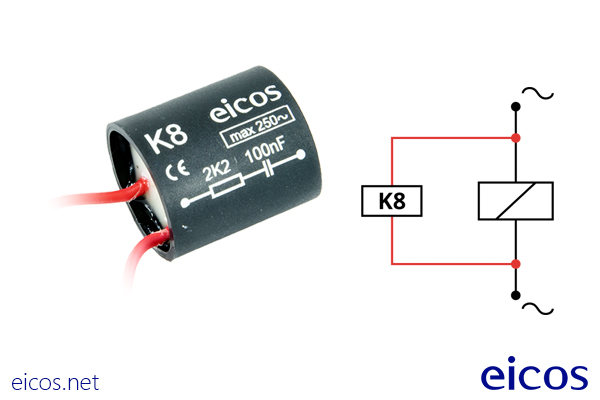

Filter K8 mounted in parallel with the coil of an AC contactor, increases the contact life.
Electrical connection of Level Switch or Flow Switch using K8 Suppressor Filter (AC)
