Phone: Flow Switch FG20B04 ideal for high flows of oil - 2"G
1 pc.
+ 2 pcs.
VAT not included
Description
The fluid flow causes the displacement of magnetic piston and closes the electrical contact of sensor (reed switch).

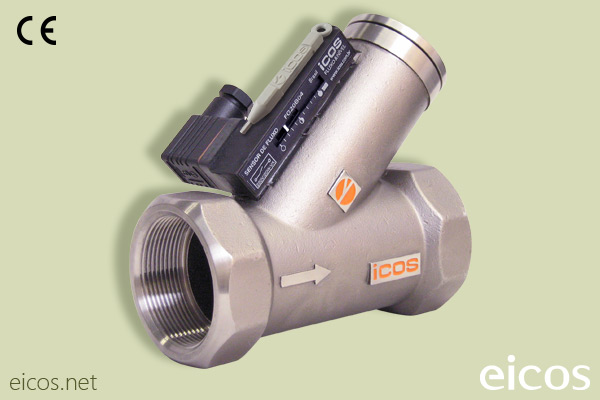

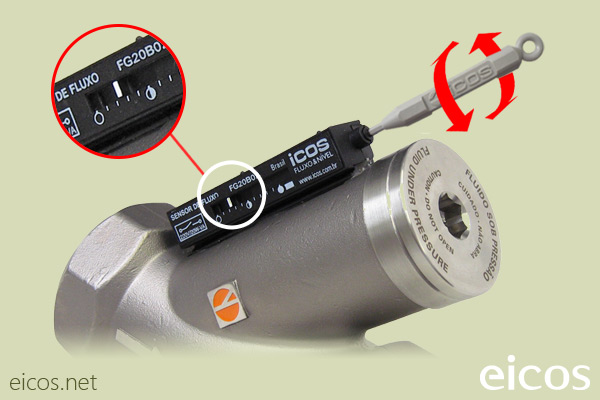

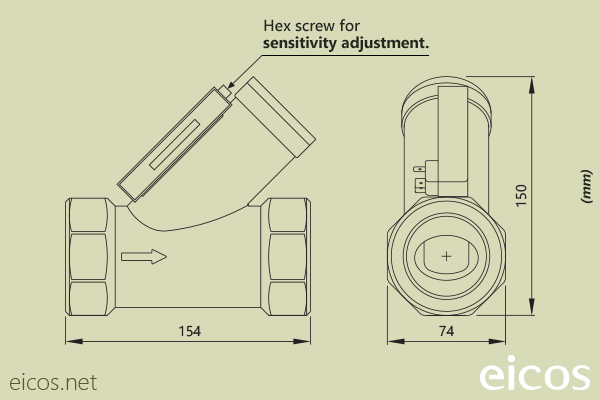

The Eicos flow switch FG20B04 of 2"G port is ideal for high flows of oil. The sensor has an operation range that allows to adjust the ideal flow of liquid to be detected in application.

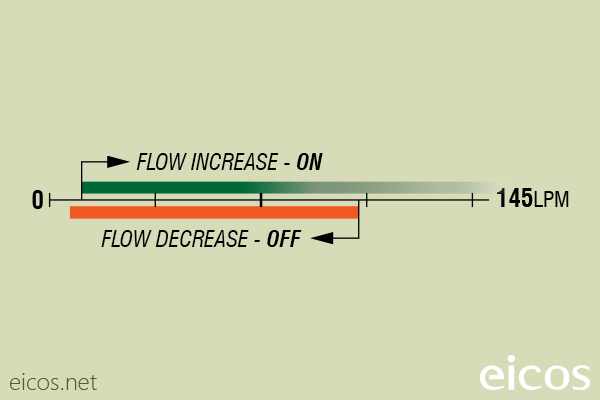

The sensor works Normally Open (NO), with ON signal when the flow (liters per minute) is higher that the sensitivity adjusted in the sensor and OFF signal when the flow decreases below the set point.
Electrical output with DIN 43650 connector (included with sensor).
For water applications, see the model FG20B02.
Technical Specifications
- Material: 316 Stainless Steel
- Internal clearance: 1000mm²
- Maximum operating pressure: 25bar
- Operating temperature range: 0°C to 100°C | 140°C @1h
- Spring: AISI 302 stainless steel
- Weight: 2.8Kg
- Output: On/Off
- Switch: NO - SPST
- Output connection: DIN 43650 - B Connector
- Enclosure rating: IP66
- Mounting: Horizontal or vertical with ascending flow
- Inlet/outlet port: G 2" female (BSP - Parallel)
- Sealing: NBR (nitrilic rubber) O’Ring
- Warranty: 2 years
Switching Voltages
| Operating Voltage | Max. Switching Power | Max. Switching Current |
| 110Vac | 20VA | 0.2A |
| 220Vac | 20VA | 0.1A |
| 5Vdc | 2.5W | 0.5A |
| 12Vdc | 5W | 0.5A |
| 24Vdc | 10W | 0.5A |
- OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
- OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
- OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.
Relay coupler (110Vac-220Vac): Use 4K7 10W resistor in series.
TECHNICAL DOCUMENTATION
- Technical Report (PDF 268KB)
- Installation Manual (PDF 362KB)
Examples of Electrical Schematics
