Phone: Level Switch LA12N-40 for level control of water, fuels and lubricants
1 — 9 pcs.
10 — 99 pcs.
+ 100 pcs.
VAT not included
Description
Movement of the magnetic float opens / closes a hermetically sealed contact.

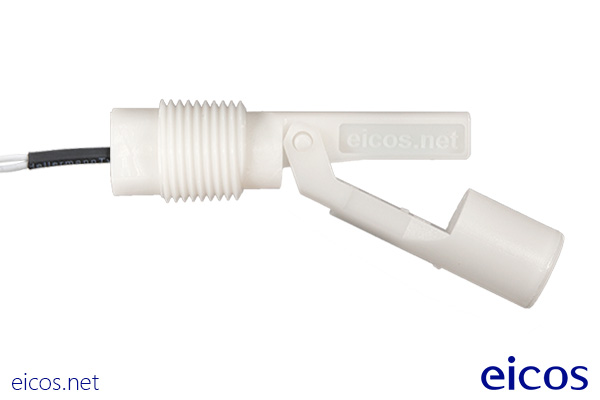

With Eicos level switch LA12N-40, you can control the level of liquid at the point (height) that it is installed in the tank. It is ideal for level control of water, oil, fuel and lubricants.
The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the external side of the tank in 1/2"NPT thread. For each liquid level to detect, is needed to install a level switch.
Output connection by 40cm wire.
Technical Specifications
- Material: POM - Polyacetal
- Maximum operating pressure: 2bar
- Operating temperature range: -10°C to 100°C
- Color: White
- Liquid minimum density (SG): 0.76
- Weight: 30g
- Output: On/Off

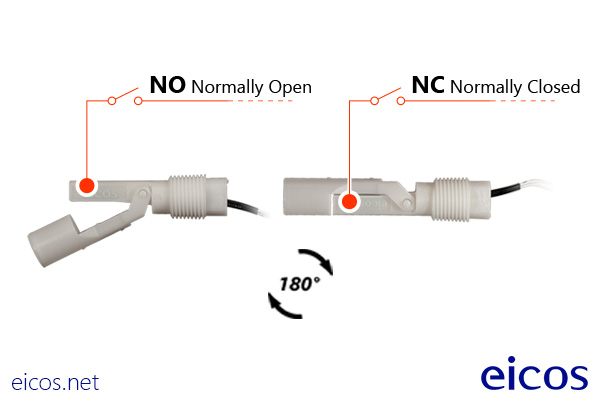

- Switch: NO/NC - SPST
- Output connection: Wire 2 x 0.5mm² x 40cm
- Enclosure rating: IP66

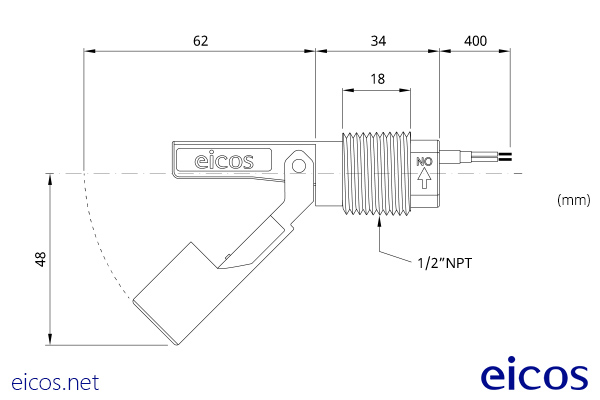

- Mounting: External side in 1/2"NPT thread
- Sealing: Sealant tape
- Maximum wall thickness: 18mm
- Minimum radius in cylindric tank: -
- Warranty: 2 years
Switching Voltages
| Operating Voltage | Max. Switching Power | Max. Switching Current |
| 110Vac | 20VA | 0.2A |
| 220Vac | 20VA | 0.1A |
| 5Vdc | 2.5W | 0.5A |
| 12Vdc | 5W | 0.5A |
| 24Vdc | 10W | 0.5A |
- OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
- OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
- OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.
Relay coupler (110Vac-220Vac): Use 4K7 10W resistor in series.
TECHNICAL DOCUMENTATION
- Technical Report (PDF 256KB)
- Installation Manual (PDF 721KB)
Examples of Electrical Schematics
