Phone: Level Switch LA31N-M12 with M12 plug and 1"NPT aluminum connection
1 — 9 pcs.
10 — 99 pcs.
+ 100 pcs.
VAT not included
Description
Movement of the magnetic float opens / closes a hermetically sealed contact.
With Eicos level switch LA31N-M12, you can control the level of liquid at the point (height) that it is installed in the tank. It is ideal for temperature up to 125°C.
The sensor, also known as level sensor, indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the external side of the tank in 1"NPT thread. For each liquid level to detect, is needed to install a level switch.
Output by male M12 connection (female M12 connector not included).
Technical Specifications
- Material: PPA - Polyphthalamide
- Maximum operating pressure: 2bar
- Operating temperature range: -10°C to 125°C
- Color: Black
- Liquid minimum density (SG): 0.70
- Weight: 70g
- Output: On/Off

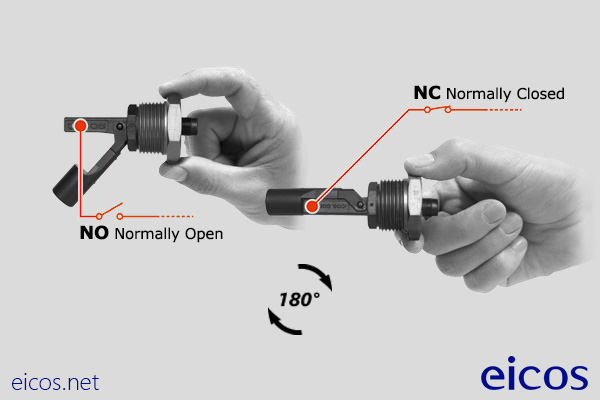

- Switch: NO/NC - SPST
- Output connection: Male M12 plug (2 pins)
Female M12 connector NOT included - Enclosure rating: IP66
- Mounting: External side in 1"NPT thread
- Sealing: Sealant tape
- Maximum wall thickness: -
- Minimum radius in cylindric tank: -
- Warranty: 2 years
Switching Voltages
| Operating Voltage | Max. Switching Power | Max. Switching Current |
| 110Vac | 20VA | 0.2A |
| 220Vac | 20VA | 0.1A |
| 5Vdc | 2.5W | 0.5A |
| 12Vdc | 5W | 0.5A |
| 24Vdc | 10W | 0.5A |
- OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
- OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
- OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.
Relay coupler (110Vac-220Vac): Use 4K7 10W resistor in series.
TECHNICAL DOCUMENTATION
- Technical Report (PDF 421KB)
- Installation Manual (PDF 721KB)
Examples of Electrical Schematics
