Phone: Level Switch LB26M-40 for surface detection - acids and chemical products
1 — 9 pcs.
10 — 99 pcs.
+ 100 pcs.
VAT not included
Description
Movement of the magnetic float opens / closes a hermetically sealed contact.

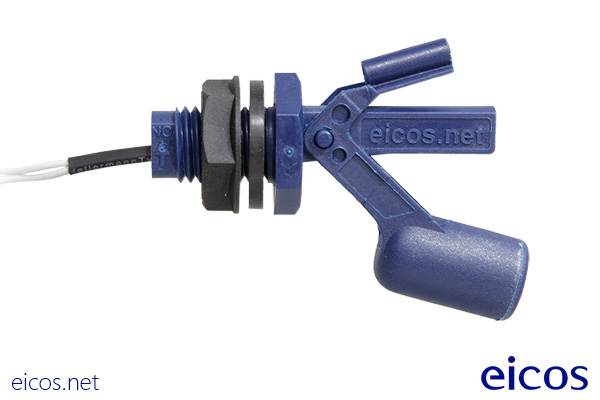

With Eicos level switch LB26M-40, you can control the level of liquid at the point (height) that it is installed in the tank. It is ideal for liquids level control at tank's surface, such as acids and chemical products.
The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the internal side of the tank in Ø16mm hole. Exclusive installation in surface for detection of maximum level.
Output connection by 40cm wire.
Not suitable for fuel.
Technical Specifications
- Material: PP - Polypropylene* PA hex nut
- Maximum operating pressure: -
- Operating temperature range: -10°C to 100°C
- Color: Dark blue
- Liquid minimum density (SG): 0.64
- Weight: 30g
- Output: On/Off

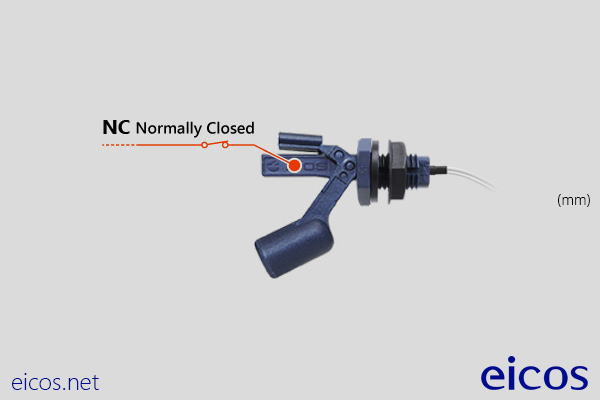

- Switch: NC - SPST
- Output connection: Wire 2 x 0.5mm² x 40cm
- Enclosure rating: IP66
- Mounting: Internal side in Ø16mm hole
- Sealing: NBR (nitrilic rubber) gasket
- Maximum wall thickness: 9mm
- Minimum radius in cylindric tank: 150mm
- Warranty: 2 years
* Although the Polypropylene supports various chemicals, depending on the product requires preliminary tests to confirm compatibility.
Switching Voltages
| Operating Voltage | Max. Switching Power | Max. Switching Current |
| 110Vac | 20VA | 0.2A |
| 220Vac | 20VA | 0.1A |
| 5Vdc | 2.5W | 0.5A |
| 12Vdc | 5W | 0.5A |
| 24Vdc | 10W | 0.5A |
- OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
- OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
- OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.
Relay coupler (110Vac-220Vac): Use 4K7 10W resistor in series.
