Description
Movement of the magnetic float opens / closes a hermetically sealed contact.

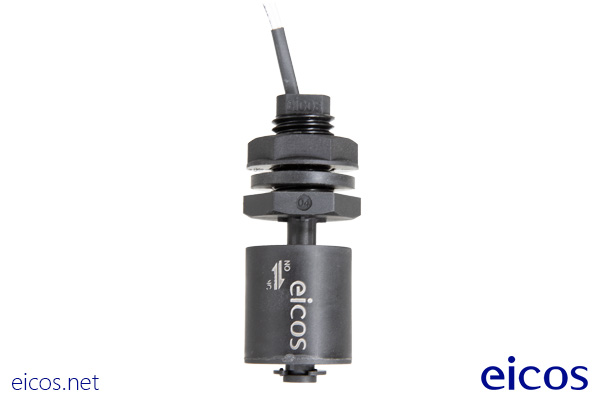

With 45mm rod length, the Eicos level switch LC36M-40 detects the level of water or other liquid at the top (maximum level) or bottom (minimum level) of the tank. It is ideal for temperatures up to 90°C.
The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the internal side of the tank in Ø16mm hole.
Output connection by 40cm wire.
Technical Specifications
- Material: PPA - Polyphthalamide PA hex nut
- Maximum operating pressure: 2bar
- Operating temperature range: -10°C to 90°C
- Color: Black
- Liquid minimum density (SG): 0.70
- Weight: 30g
- Output: On/Off
- Switch: NO/NC - SPST
- Output connection: Wire 2 x 0.5mm² x 40cm
- Enclosure rating: IP66
- Mounting: Internal side in Ø16mm hole
- Sealing: NBR (nitrilic rubber) gasket
- Maximum wall thickness: 9mm
- Warranty: 2 years
Switching Voltages
| Operating Voltage | Max. Switching Power | Max. Switching Current |
| 110Vac | 20VA | 0.2A |
| 220Vac | 20VA | 0.1A |
| 5Vdc | 2.5W | 0.5A |
| 12Vdc | 5W | 0.5A |
| 24Vdc | 10W | 0.5A |
- OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
- OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
- OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.
Relay coupler (110Vac-220Vac): Use 4K7 10W resistor in series.
