Phone: Level Switch LE151-M12 with 150mm, M12 plug and 1 detection point
1 pc.
2 — 9 pcs.
+ 10 pcs.
VAT not included
Description

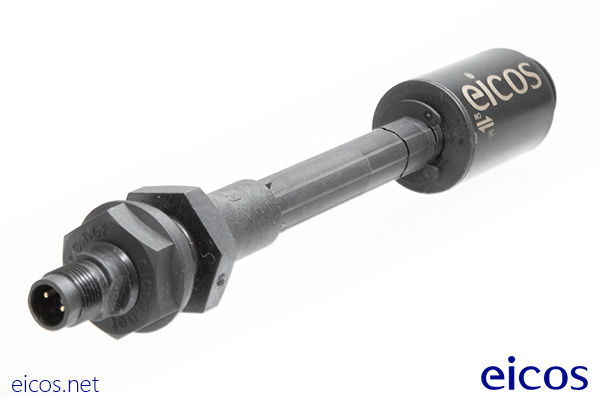

Movement of the magnetic float opens / closes a hermetically sealed contact.

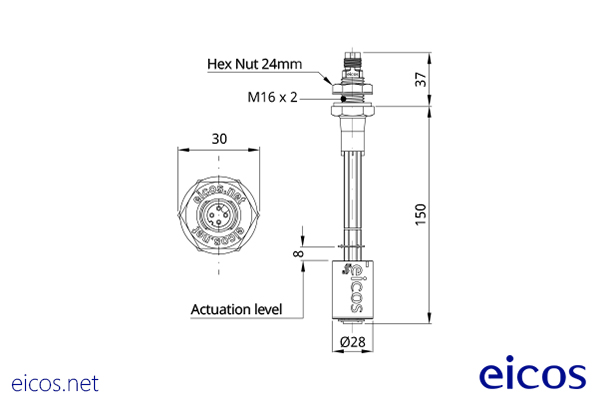

With 150mm rod length, the Eicos level switch LE151-M12 detects 1 level point of water or other liquid at the top (maximum level) or bottom (minimum level) of the tank. It is ideal for temperatures up to 90°C.
The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the internal side of the tank in Ø16mm hole.
Output by male M12 connection (female M12 connector not included).
Technical Specifications
- Material: PPA - Polyphthalamide PA hex nut
- Maximum operating pressure: 2bar
- Operating temperature range: -10°C to 90°C
- Color: Black
- Liquid minimum density (SG): 0.70
- Weight: 70g
- Output: On/Off
- Switch: NO/NC - SPST
- Output connection: Male M12 plug (2 pins)
Female M12 connector NOT included - Enclosure rating: IP66
- Mounting: Internal vertical in Ø16mm hole
- Sealing: NBR (nitrilic rubber) gasket
- Maximum wall thickness: 9mm
- Warranty: 2 years
Switching Voltages
| Operating Voltage | Max. Switching Power | Max. Switching Current |
| 110Vac | 20VA | 0.2A |
| 220Vac | 20VA | 0.1A |
| 5Vdc | 2.5W | 0.5A |
| 12Vdc | 5W | 0.5A |
| 24Vdc | 10W | 0.5A |
- OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
- OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
- OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.
Relay coupler (110Vac-220Vac): Use 4K7 10W resistor in series.
TECHNICAL DOCUMENTATION
- Technical Report (PDF 350KB)
- Installation Manual (PDF 773KB)
Examples of Electrical Schematics
