Phone: Level Switch LV42A-40 for mounting in PVC pipes
1 — 9 pcs.
10 — 99 pcs.
+ 100 pcs.
VAT not included
Description
Movement of the magnetic float opens / closes a hermetically sealed contact.

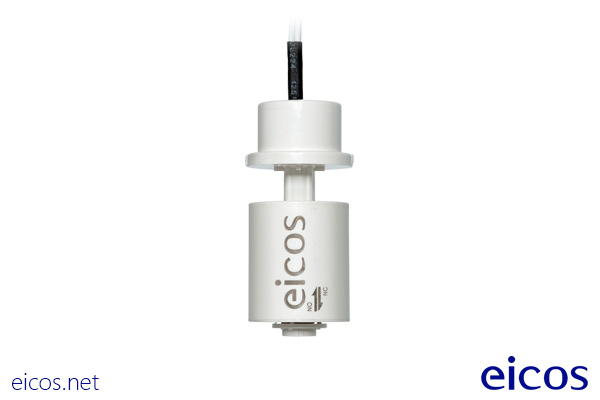

With Eicos level switch LV42A-40 (45mm length), it is possible to control the level of liquids in tanks with narrow passages and you decide the level points to detect in the tank using pipes and PVC accessories*. This sensor is 100% PVC and has high compatibility with various types of liquids, such water, oil, fuel and chemical products.
The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Side mounting at multiple points.
Mounting with PVC pipes, output connection by 40cm wire.
*Tip: Use the 20x20 Vertical PVC Adapter for more detection points of level.
Technical Specifications
- Material: PVC - Polyvinyl Chloride
- Maximum operating pressure: 2bar
- Operating temperature range: 5°C to 50°C
- Color: White
- Liquid minimum density (SG): 0.60
- Weight: 22g
- Output: On/Off

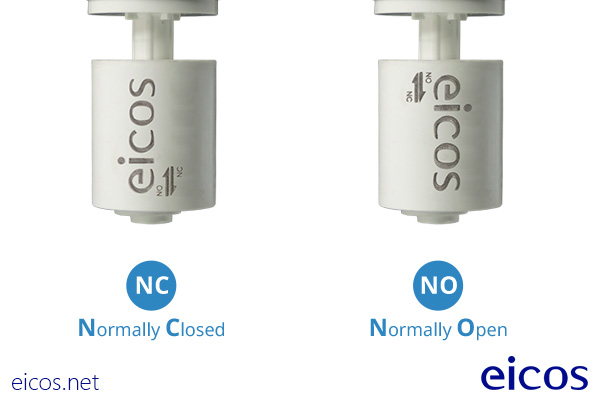

- Switch: NO/NC - SPST
- Output connection: Wire 2 x 0.5mm² x 40cm
- Enclosure rating: IP66
- Mounting: Vertical with PVC pipes
- Maximum wall thickness: -
- Warranty: 2 years
Switching Voltages
| Operating Voltage | Max. Switching Power | Max. Switching Current |
| 110Vac | 20VA | 0.2A |
| 220Vac | 20VA | 0.1A |
| 5Vdc | 2.5W | 0.5A |
| 12Vdc | 5W | 0.5A |
| 24Vdc | 10W | 0.5A |
- OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
- OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
- OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
- OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.
Relay coupler (110Vac-220Vac): Use 4K7 10W resistor in series.
TECHNICAL DOCUMENTATION
- Product Presentation (PDF 500KB)
- Technical Report (PDF 296KB)
Examples of Electrical Schematics
